EF-USB3-H

USB 3.2 Gen 1 CAT6A Host 100m over HDBaseT

Please add this product to your quote cart.
We will get in touch with you once we receive your request.

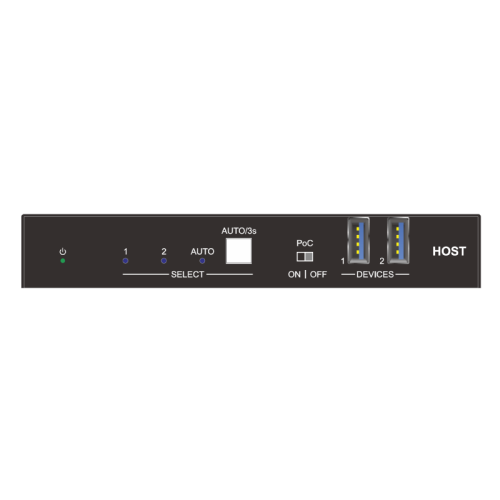

The EF-USB3-H extender is designed to transmit USB signal up to 100m distance. It is the host port of the extender, it contains one Type-B and one Type-C for PC or laptop connect. It also has two local USB-A port with 5V500mA power supply for speak er phone and headset The extender also supports bi directional 24V PoC power.

The extender features multiple methods of control. When in the AUTO mode, EF-USB3-H will automatically switch to the first detected host. When the active host is removed, the unit will switch to another host when the host is connected to a PC/Laptop. The unit can be manually controlled by the front panel buttons and RS232 commands.

FEATURES

    • 2x1 USB 3.2 Gen1 switcher
    • Support extend USB signal up to 100m
    • Support RS232 passthrough/control upgrade
    • Auto/manual switching mode
    • Bi-directional 24V PoC power supply
