MM4-16C [Discontinued]

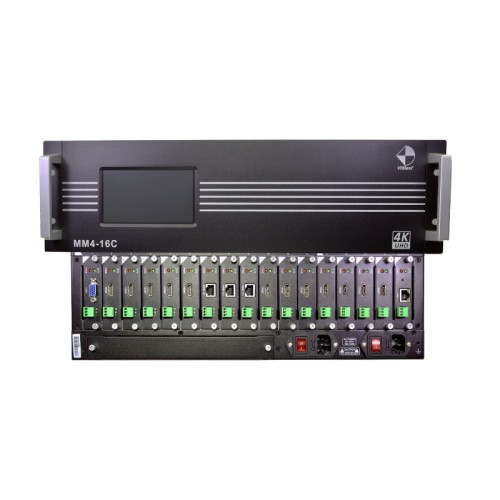

VitBest MM4-16C multi-format modular matrix is a UHD video and audio signal management device support flexible Video I/O configuration with max 12 video inputs or min 4 outputs configuration.

The flexible configuration for the matrix as below: 12In*4Out/ 11In*5Out/ 10In*6Out/ 9In*7Out/ 8In*8Out/ 7In*9Out/ 6In*10Out/ 5In*11Out/ 4In*12Out/ 3In*13Out/ 2In*14Out/ 1In*15Out or moreconfigurations- Such as 2In*8Out/ 4In*10Out/ 6In*6Out.

FEATURES

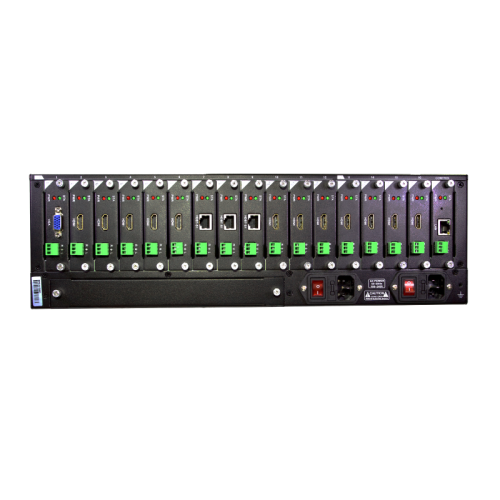

• Modular design on each port, max 12 input and min 4 output ports
• Input cards: HDMI/ DVI/ DP/ VGA/ YPbPr/ HDBT/CVBS/ Optic/ 3G HDSDI
• Output cards: HDMI/ DVI/ DP/ VGA/ YPbPr/ HDBT/CVBS/OPTIC/ 3G HDSDI/Scalar card
• Support 1080p@60Hz, 4K 30Hz and up to 4K 60Hz by MC4-IN-HDMI-2.0
• Support daughter cardhot plug and alone power management
• Audio matrix support theexternal and internal audio switch to each other, max 16 switch to each other
• Support EDID management
• Support field FW upgrade
• Support 32 preset road scene and recall
• Support RS232, LAN, IR , RS485 and Relay
• Support Web Server for easy management, monitor and configuration

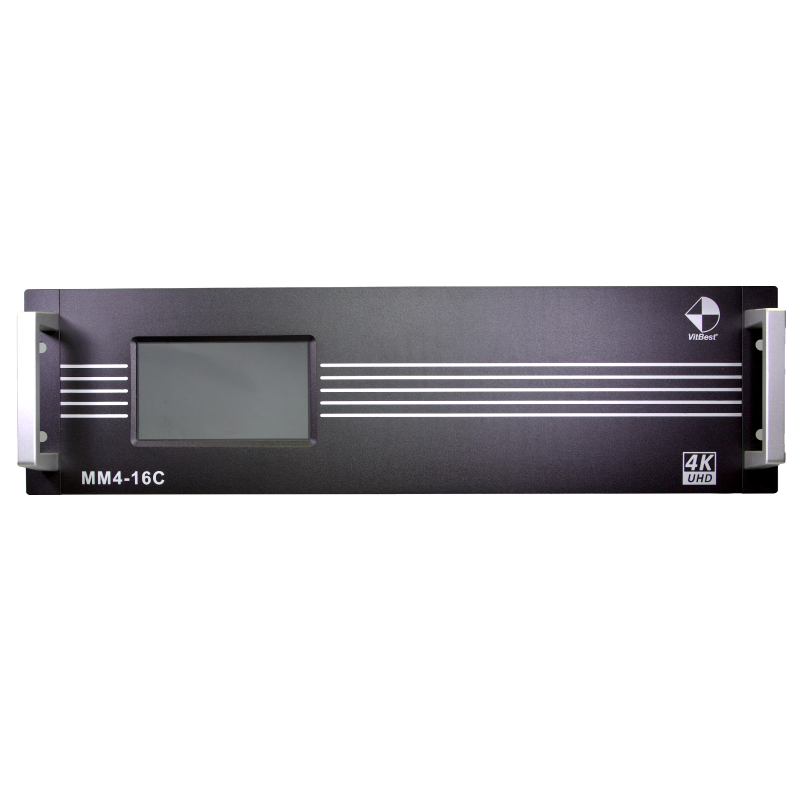

• Support Front 5 inch capacitive touch screen display for the input and outputof the resolution and EDID status
• Support the user data backup and restore function
• Support ethement port TCP Socket or RS232command
• Web interface to support full function control, and show all the status information of the matrix
